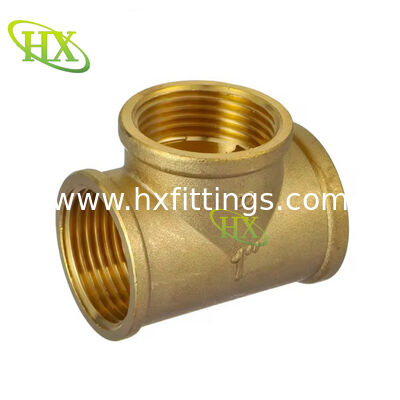

Brass Lead Free Internal Half Threaded Socket Fitting – For Plumbing, Water, Gas & Oil Systems – Hongxin Pipe Fitting
제품 상세 정보
| 재료 | 놋쇠 | 보증 | 3년 |
|---|---|---|---|
| 맞춤형 지원 | OEM | 공예 | 서서히 나아가는 |
| 연결 | 여성 | 모양 | 똑바로 |
| 색상 | 노란색 황동 색상 | 크기 | 3/8-4 |
| 용법 | 수유 가스 | MOQ | 500개 |
제품 설명
Product Overview
This Brass Lead Free Internal Half Threaded Socket Fitting is a plumbing component designed to connect pipes in water, natural gas, LPG, and low-pressure oil systems. The term “half threaded” means that the internal bore is partially threaded (typically 50-70% of the total socket depth), while the remaining portion is smooth.
Manufactured by Hongxin Pipe Fitting, this socket fitting uses certified lead-free brass (ASTM C46400 or CW509L equivalent), with lead content below 0.25% by weight, complying with:
-
NSF/ANSI 61 – Drinking water system components
-
RoHS Directive (2011/65/EU) – Restriction of hazardous substances
-
California AB1953 and Vermont S152 – Lead-free plumbing laws
Technical Specifications
| Parameter | Value / Range |
|---|---|
| Material | Lead-free brass (C46400 / CW509L) |
| Lead content | ≤ 0.25% (certified) |
| Thread type | Internal (female) half thread |
| Thread standards | BSP (BS 21) or NPT (ANSI B1.20.1) |
| Size range (nominal) | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
| Working pressure – water | 400 PSI (27.6 bar) at 23°C |
| Working pressure – gas (natural/LPG) | 300 PSI (20.7 bar) at 23°C |
| Working pressure – oil (low pressure) | 250 PSI (17.2 bar) at 23°C |
| Temperature range | -20°C to +120°C (-4°F to +248°F) |
| Thread length (threaded portion) | 40-60% of total socket depth (size dependent) |
| Smooth bore length | 40-60% of total socket depth |
Applications
-
Potable water plumbing – Residential and commercial drinking water lines
-
Natural gas and LPG systems – Indoor and outdoor gas distribution
-
Low-pressure hydraulic oil – Return lines and lubrication circuits (non-shock)
-
HVAC systems – Chilled and hot water loops
-
Compressed air – Low to medium pressure (≤ 250 PSI recommended)
Why Choose Hongxin Pipe Fitting?
| Reason | Specific Benefit |
|---|---|
| Certified lead-free compliance | Third-party test reports available for NSF/ANSI 61, RoHS, AB1953 |
| Factory direct pricing | No trading company markup – savings of 15-25% on bulk orders |
| Precision half threading | Consistent thread depth and smooth bore transition – no burrs or step defects |
| 100% thread gauge inspection | Each fitting checked with Go/No-Go gauges before packaging |
| Thread standard accuracy | BSP or NPT produced to BS 21 / ANSI B1.20.1 tolerances |
| Custom size availability | Sizes from 1/4" to 2" as standard; larger sizes (2-1/2" to 4") on request |
| Pressure test available | Optional hydrostatic testing at 1.5x rated pressure |
| Lead time | 7-12 days for samples, 20-25 days for 20ft container (MOQ 5,000 pcs) |
| Global shipping | Export documentation provided – 50+ countries served |
Hongxin Pipe Fitting has manufactured brass plumbing fittings for over 12 years, supplying to plumbing wholesalers, gas utility contractors, and industrial distributors. Our lead-free half threaded sockets are produced on CNC lathes with automated thread cutting, ensuring dimensional consistency to ±0.05mm.
Product Description
Brass lead free internal half threaded socket fitting from Hongxin Pipe Fitting for plumbing, water, gas, and oil systems. Lead-free brass C46400, lead ≤0.25%, NSF/ANSI 61 compliant. Internal half thread (BSP or NPT), sizes 1/4" to 2". Working pressure: water 400 PSI, gas 300 PSI, oil 250 PSI. Temperature -20°C to +120°C. Factory direct, 100% thread inspected.
